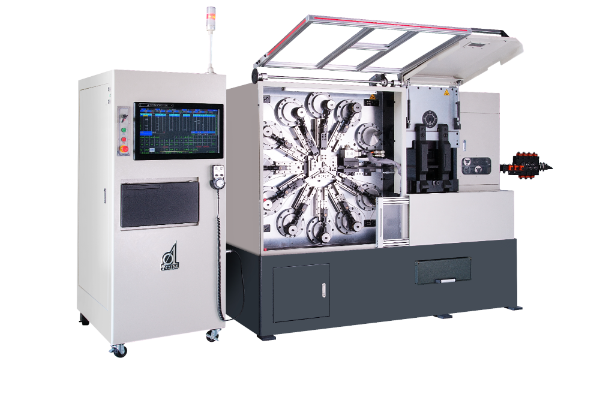

TCIM-CNC-50T16
Add to inquiry box
Production information
MACHINE OVERVIEW
The All-Servo Multi-Slide Forming Machine features a cam-free design, independently controlled servo slides, and a servo punch press to meet the forming requirements of complex products.
SERIES CAPABILITY
Except for the 29T2, all other models support both punching and stamping operations, with different capacity levels to suit varying product sizes and forming requirements.
TECHNICAL SPECIFICATIONS
Wire Diameter1.0–5.0mm
Axes16
Press Capacity50ton
Max. Production Rate300 / 100Forming / Press · pcs/min
| Wire Diameter | 1.0–5.0 mm |
| Wire Thickness | 0.3–2.0 mm |
| Wire Width | 60 mm |
| Wire Hardness (Carbon) | 80C |
| Axes | 16 |
| Max. Production Rate | Forming: 300 pcs/min Press: 100 pcs/min |
| Max. Feed Length | Unlimited |
| Feed Method | Roller Feed |
| Press Capacity | 50 ton |
| Slide Capacity | 4 ton |
| Press Stroke | 30 mm |
| Slide Stroke | 100 mm |
| Slide Accessory | 12 |
| Machine Dimensions | 4,160 × 1,260 × 2,000 mm |
| Machine Weight | 5,255 kg |
